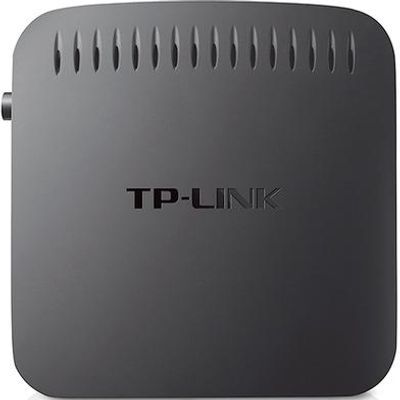

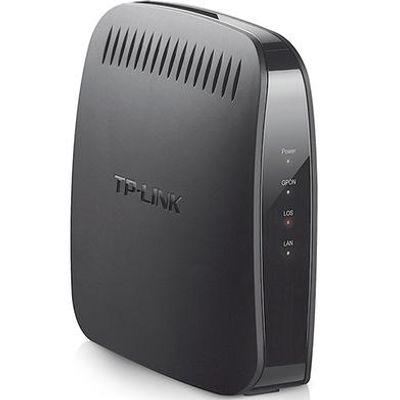

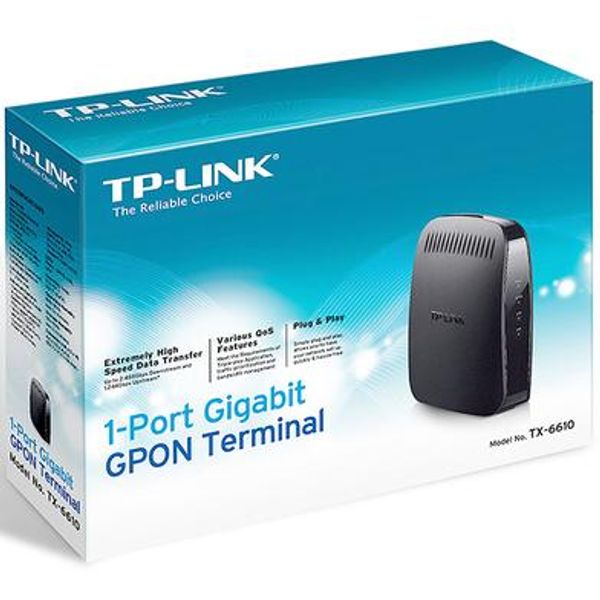

TP-Link TX-6610 1-port Gigabit GPON Terminal - TX-6610
Product Summary & SpecificationSummary:Complies with ITU G.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4 provides comprehensive GPON network compatibilityDownstream rates of up to 2.488Gbps and upstream rates up to 1.244GbpsFiber access and gigabit port provide incredibly fast transfer speedsSupports OMCI (ONT Management Control Interface) remote managementSpecification:Title:TP-Link TX-6610 1-port Gigabit GPON TerminalBrand:TP-LinkWarranty Period1 YearCountry of OriginChinaCoverage Area0-20 km maxFeaturesUpstream and Downstream FECDynamic Bandwidth Allocation(DBA) support NSR/SRUp to 16 T-CONTs and 256 GEM PortsOptical power detection, Dying GaspTerminal Silent mechanism802.3az EEE Energy ConservationColourBlackDimensions102.7 x 37.9 x 106.9mmModelTX-6610SecurityAES EncryptionPacket Filter based on VLANSystem RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.External Power Supply9VDC/0.6ALED indicatorYesNumber Of PortsUp to 16 T-CONTs and 256 GEM PortsTemperature (°C) Operating0℃~40℃ (32℉~104℉)Data RateUpstream:1.244GbpsDownstream:2.488GbpsRouter TypeGPON TerminalVLAN802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto DetectOptical ModuleClass C+Bottom1 Power On/Off Button1 RESET Button
NEED SUPPLY
Category List
All products
Product Summary & Specification
Summary:
- Complies with ITU G.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4 provides comprehensive GPON network compatibility
- Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
- Fiber access and gigabit port provide incredibly fast transfer speeds
- Supports OMCI (ONT Management Control Interface) remote management
| Specification: | ||||||
| Title: | TP-Link TX-6610 1-port Gigabit GPON Terminal | |||||
| Brand: | TP-Link | |||||
| Warranty Period | 1 Year | |||||
| Country of Origin | China | |||||
| Coverage Area | 0-20 km max | |||||
| Features | Upstream and Downstream FEC | Dynamic Bandwidth Allocation(DBA) support NSR/SR | Up to 16 T-CONTs and 256 GEM Ports | Optical power detection, Dying Gasp | Terminal Silent mechanism | 802.3az EEE Energy Conservation |
| Colour | Black | |||||
| Dimensions | 102.7 x 37.9 x 106.9mm | |||||
| Model | TX-6610 | |||||
| Security | AES Encryption | Packet Filter based on VLAN | ||||
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. | |||||
| External Power Supply | 9VDC/0.6A | |||||
| LED indicator | Yes | |||||
| Number Of Ports | Up to 16 T-CONTs and 256 GEM Ports | |||||
| Temperature (°C) Operating | 0℃~40℃ (32℉~104℉) | |||||
| Data Rate | Upstream:1.244Gbps | Downstream:2.488Gbps | ||||
| Router Type | GPON Terminal | |||||
| VLAN | 802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect | |||||
| Optical Module | Class C+ | |||||
| Bottom | 1 Power On/Off Button | 1 RESET Button |
TP-Link TX-6610 1-port Gigabit GPON Terminal - TX-6610
1,400 BDT
sold_units 1240
1
Product Summary & Specification
Summary:
- Complies with ITU G.984.1, ITU G.984.2, ITU G.984.3 and ITU G.984.4 provides comprehensive GPON network compatibility
- Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
- Fiber access and gigabit port provide incredibly fast transfer speeds
- Supports OMCI (ONT Management Control Interface) remote management
| Specification: | ||||||
| Title: | TP-Link TX-6610 1-port Gigabit GPON Terminal | |||||
| Brand: | TP-Link | |||||
| Warranty Period | 1 Year | |||||
| Country of Origin | China | |||||
| Coverage Area | 0-20 km max | |||||
| Features | Upstream and Downstream FEC | Dynamic Bandwidth Allocation(DBA) support NSR/SR | Up to 16 T-CONTs and 256 GEM Ports | Optical power detection, Dying Gasp | Terminal Silent mechanism | 802.3az EEE Energy Conservation |
| Colour | Black | |||||
| Dimensions | 102.7 x 37.9 x 106.9mm | |||||
| Model | TX-6610 | |||||
| Security | AES Encryption | Packet Filter based on VLAN | ||||
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux. | |||||
| External Power Supply | 9VDC/0.6A | |||||
| LED indicator | Yes | |||||
| Number Of Ports | Up to 16 T-CONTs and 256 GEM Ports | |||||
| Temperature (°C) Operating | 0℃~40℃ (32℉~104℉) | |||||
| Data Rate | Upstream:1.244Gbps | Downstream:2.488Gbps | ||||
| Router Type | GPON Terminal | |||||
| VLAN | 802.1Q tag VLAN VLAN transparent mode/VLAN translation mode/VLAN trunk mode Authentication based on SN and Password VLAN Auto Detect | |||||
| Optical Module | Class C+ | |||||
| Bottom | 1 Power On/Off Button | 1 RESET Button |
